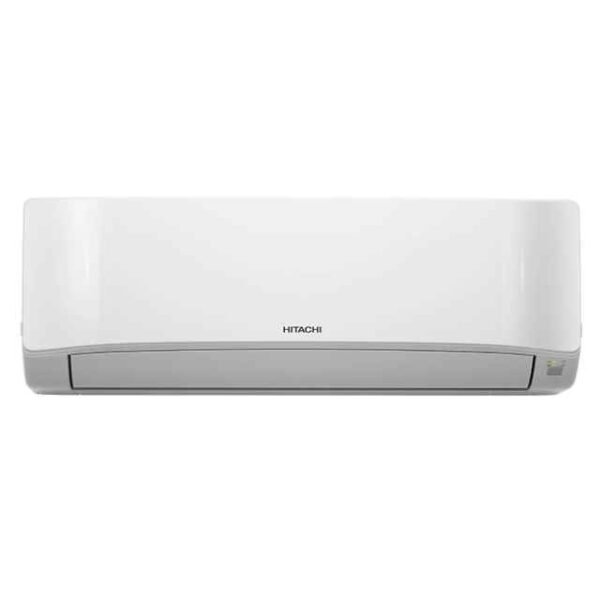

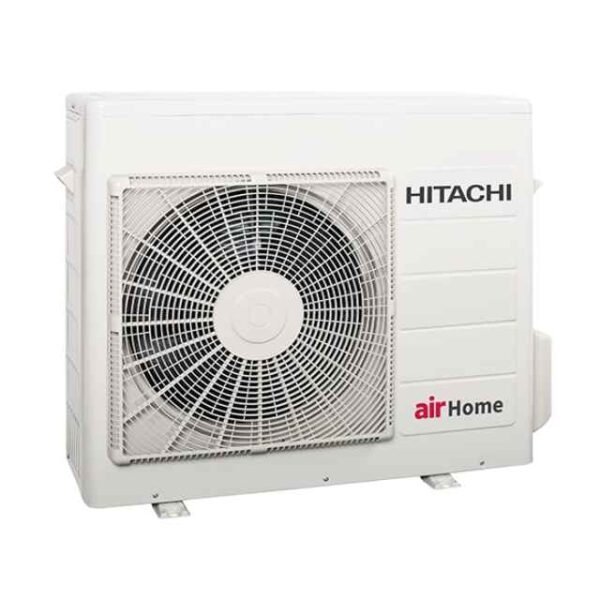

Hitachi Wall Mounted Air Conditioner 1.7 TON RAK-DJ60PHAE / RAC-DJ60PHAE Inverter

Specifications of LG Split Air Conditioner 1.0 Ton I12CGH DUALCOOL Inverter

• Dual Inverter Compressor™
• TUV Rheinland
• Energy Saving
• Fast Cooling

Cooling – Min ~ Rated ~ Max(kW): 0.88/3.52/3.87

Cooling – Min ~ Rated ~ Max(Btu/h): 3,000/12,000/13,200

Heating – Min ~ Rated ~ Max(kW): 0.88/3.52/4.04

Heating – Min ~ Rated ~ Max(Btu/h): 3,000/12,000/13,800

Cooling – Min ~ Rated ~ Max(W): 140/1,085/1,400

Heating – Min ~ Rated ~ Max(W): 140/975/1,550

Cooling – Min ~ Rated ~ Max(A): 0.70/5.00/6.50

Heating – Min ~ Rated ~ Max(A): 0.70/4.80/7.50

EER(W/W): 3.24

EER((Btu/h)/W): 11.06

COP(W/W): 3.61

COP((Btu/h)/W): 12.31

POWER SUPPLY: Ø, V, Hz: 1, 220 ~ 240, 50

Available Voltage Range(V): 187 ~ 276

Cooling/Heating(%): 94/94

Moisture Removal(l/h): 0.80

Air Flow Rate – Cooling, Max/H/M/L(m³/min): 12.5/9.3/7.2/2.7

Air Flow Rate – Heating, Max/H/M/L(m³/min): 13/10/7/5.5

Sound Pressure Level – Cooling, H/M/L/SL(dB(A)): 42/36/28/21

Sound Pressure Level – Heating, H/M/L(dB(A)): 42/36/31

Dimensions (W×H×D) – Net(mm): 837 × 308 × 189

Dimensions (W×H×D) – Shipping(mm): 909 × 383 × 256

Weight – Net(kg): 8.5

Weight – Shipping(kg): 10.6

Munsell: 7.5BG 10/2 (RAL 9016)

Air Flow Rate – Max(㎥/min): 27.0

Sound Pressure Level – Cooling, Rated(dB(A)): 51

Sound Pressure Level – Heating, Rated(dB(A)): 53

Dimensions (W×H×D) – Net(mm): 717 × 483 × 230

Dimensions (W×H×D) – Shipping(mm): 837 × 530.5 × 332

Weight – Net(kg): 26.4

Weight – Shipping(kg): 30.1

Max. Fuse Size(A): 20

Munsell 9.54Y 8.34/1.31 (RAL 9001)

Operation Range – Cooling(℃ DB): 18 ~ 48

Operation Range – Heating(°C DB): -5 ~ 24

Operation Range – Heating(℃ WB): -5 ~ 18

Circuit Breaker(A): 15

Power Supply Cable(No.×㎟): 3 × 1

Power and Communication Cable(No.×mm²): 4 × 0.75

PIPING Size – Liquid(mm): Ø 6.35

Size – Gas(mm): Ø 9.52

Connections Method – Indoor/Outdoor

Flared/Flared

DRAIN HOSE SIZE

O.D, I.D(mm): 21.5, 16.0

BETWEEN INDOOR & OUTDOOR

Piping Length – Min/Standard/Max(m): 3.6/7.5/15

Piping Length – No Charge(m): 7.5

Max. Elevation Difference(m): 7

Piping Connection Heat Insulation

Both liquid and Gas Pipes

REFRIGERANT

Type: R410A

Pre Charge(g): 850

Additional Charge(g/m): 20

Control: Capillary

Global Warning Potential: 2087.5

t-CO₂ eq: 1.774

DEFROST METHOD

Defrost Method: Reverse Cycle:

Indoor/Outdoor: SJ/UA3

COMPRESSOR

Type: Twin Rotary

Oil Type/Maker: POE (RB68A)/Sun Oil or Jx Nippon

Oil Charge(cc): 280

FAN(INDOOR) Type: Cross Flow Fan

Motor Output (W): 30

FAN(OUTDOOR): Type

Propeller Fan Motor Type: AC

Motor Output(W): 25

Motor Insulation: Class E

Motor Enclosure/Ingress Protection: TEAO/IP43

HEAT EXCHANGER

Evaporator – Material, Tube/Fin: Cu/Al

Evaporator – (ø x Row x Column x FPI x L) x Qty.(#1)

(ø7 x 2 x 16 x 20 x 744) x 1

Evaporator – Corrosion Protection: PCM

Evaporator – Fin Type: Slit

Condenser – Material, Tube/Fin: Cu/Al

Condenser – (ø x Row x Column x FPI x L) x Qty.(#1): (ø7 x 2 x 22 x 18 x 667) x 1

Condenser – Corrosion Protection: Gold

Condenser – Fin Type: Louverk
